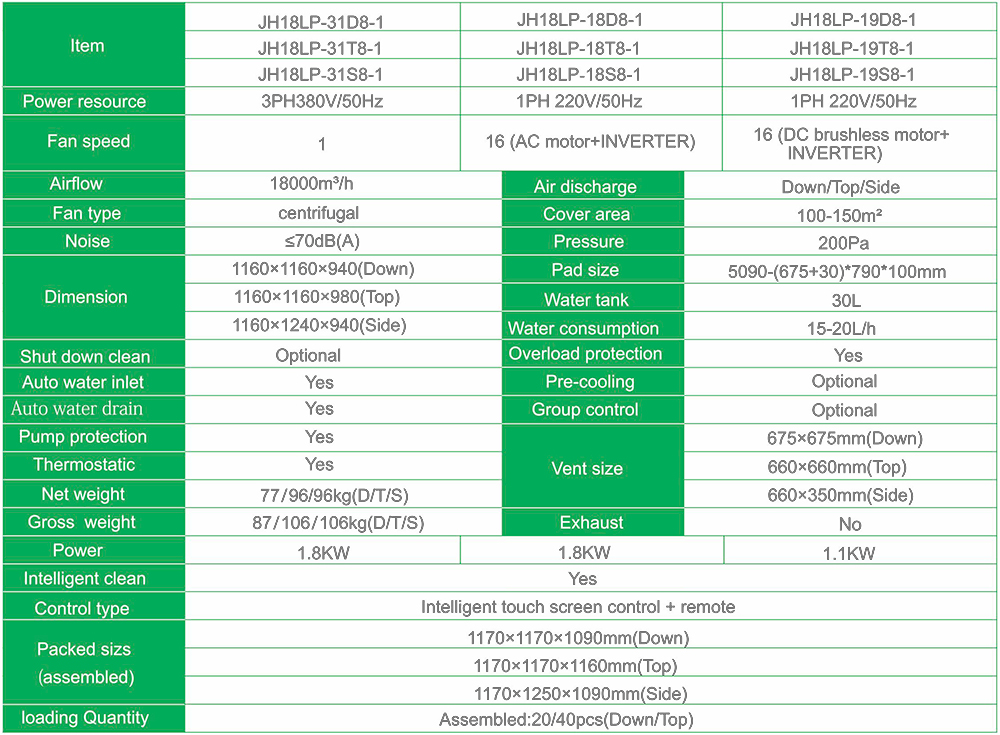

DC Motor Air Cooler


    Power: 1.5KW

    Airflow: 18000m3/h

    Coverage: 100-150m2

    Air Discharge: Side

    Dimension:  1160×1240×940mm

    Shipping:Support Sea freight · Land freight · Air freight

    Date of delivery:15-35 days

    Guarantee:1 Year for machinery warranty

    Payment terms: T/T or L/C at sight.

Download Inquiry

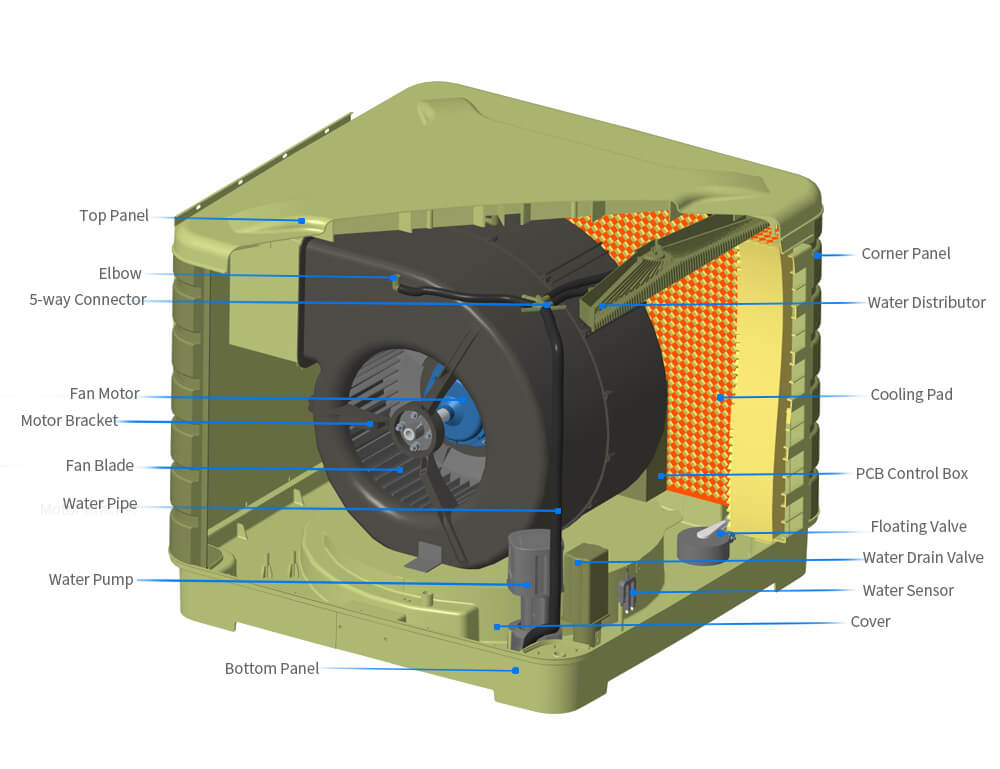

1) Excellent shape design and construction achieve good performance and quality.
2) The body is made of modified copolymer PP engineering plastics which is UV resistant, anti-corrosion, anti-aging and anti deformation."

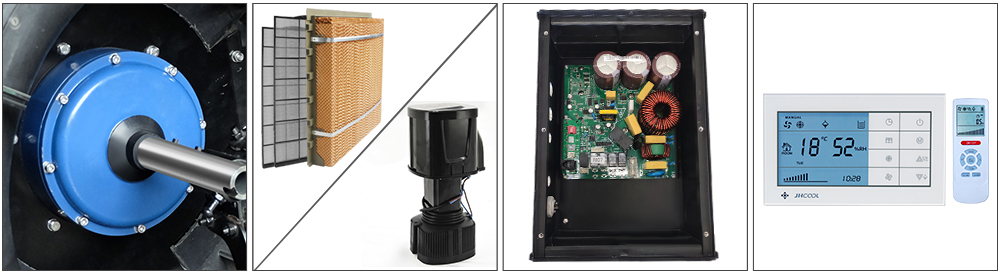

3) Brushless DC motor adopts high-quality fully sealed aluminum alloy shell, with good heat dissipation performance, low temperature rise and high protection grade.
4) The open water distributor makes the water flow uniform and smooth, and is not easy to be blocked.
5) The centrifugal fan is made of engineering plastics and has the advantages of low noise, large airflow, high air pressure and high efficiency.
6) The frequency conversion control system adjusts 16-speed, intelligent working mode and saves power.
7) The dust filter can better protect the cooling pad, make the cooling pad easier to clean and make the air quality better.
8) The self-designed water pump can supply water stably and will not be damaged under water shortage.
9) The default is 8-hour automatic drainage to make the water quality of the water tank cleaner. 0-48 hours adjustable automatic cleaning function, intelligent          maintenance without care.
10)A variety of types are selected, including single speed, double speed, voltage regulation 16 speed and frequency regulation 16 speed, to meet the needs of          different places.

Expandable Functions:
1)Install UV lamp to avoid Legionnaires' disease.
2)Set exhaust function by wall controller.
3)Pre cooling function: when power on, water pump will work for 1 minute first to ensure that the cooling pad is soaked, and then the fan runs and cools faster.
4)Group control function: One group controller can control 46 air coolers at the same time.
5)Auto timer-on / off function: set automatic on / off during 00:00~24:00.
6)Temperature and humidity control function: temperature and humidity sensors are installed anywhere in the room to display the indoor temperature and humidity;         this helps coolers auto-cooling and auto-ventilation.
7)Memory function after power off: automatically save coolers’ running status when power off and recover the original working status when power on.
8)Shutdown exhaust function: fan will run anti-clockwise to dry the cooling pads to ensure that bacteria will not grow after the air cooler stops working.
